Product Feature
All wetted parts are made of SS304
Both square and round motors available
YE3 high-efficiency motor, protection grade IP55 , Class F
Unique design can be used to transport seawater
High-quality bearing, wear-resistant mechanical seal

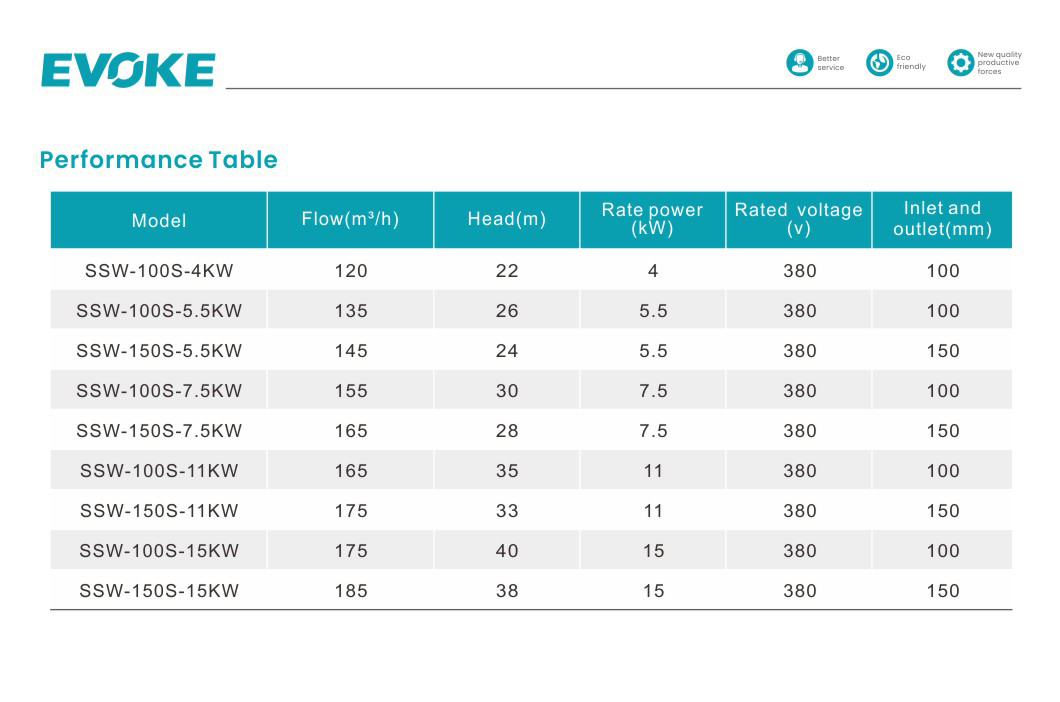

Technical Parameters
Inlet/Outlet range:DN100~DN150
Flow range:100~185m³/h
Head range:15~ 38m
Max working pressure: 20bar
Liquid temperature:40°C
