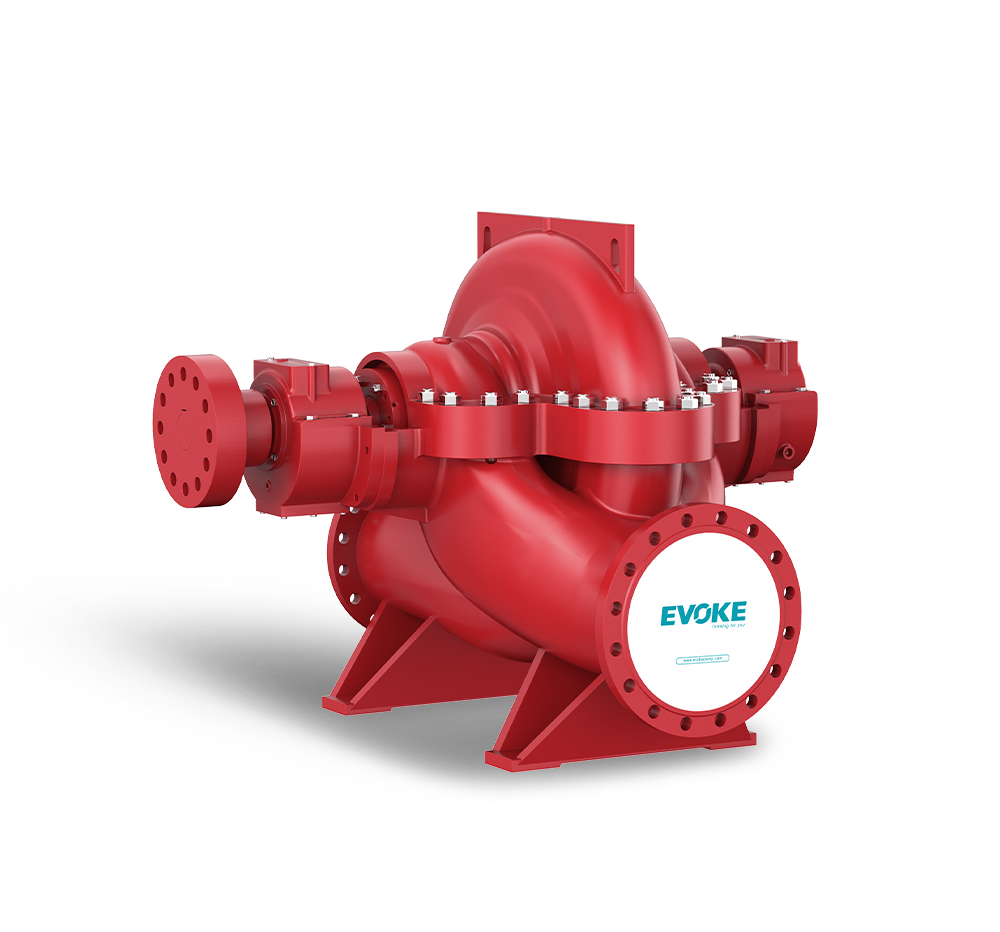

ESC Double Suction Split Case Pump



Product Feature

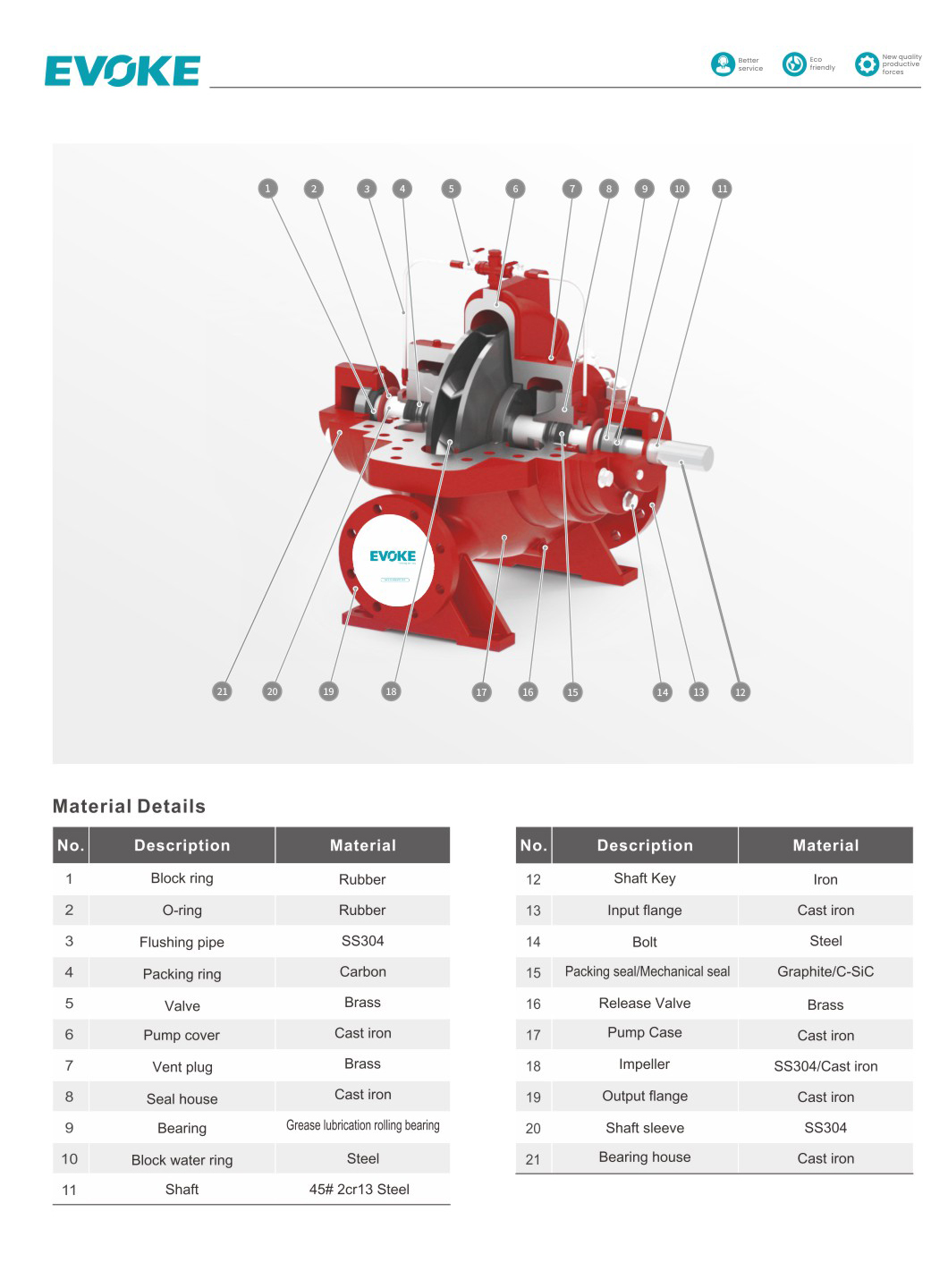

Design of axial split volute pump casing

Pump casing with anti-corrosion coating HT250

Double inlet radial impeller in AISI 304 or HT250

Shaft protection sleeve in sealed area

Use packing for sealing

Lubricating grease filled rolling element bearings

Equipped with an electric motor or diesel engine

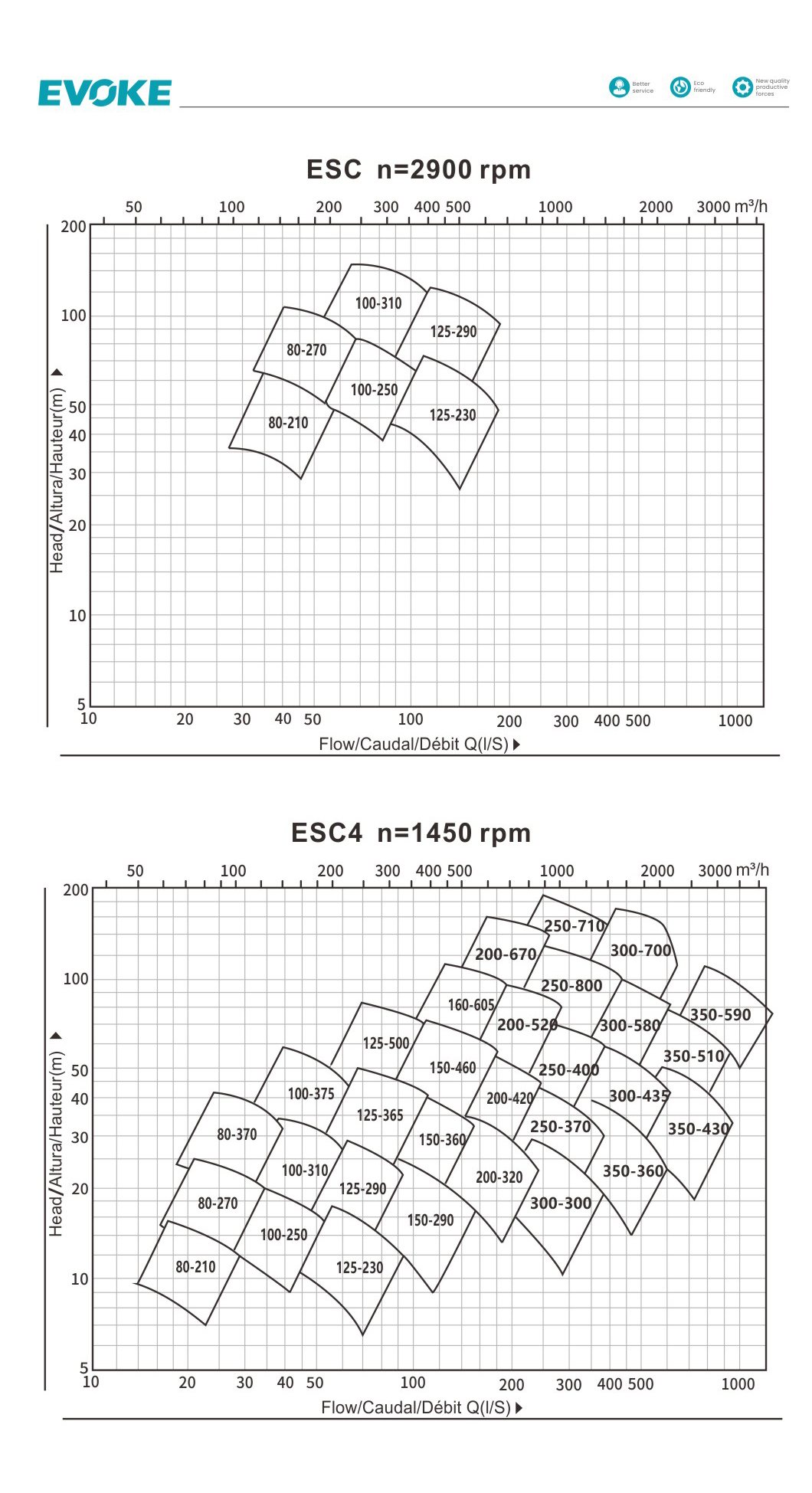

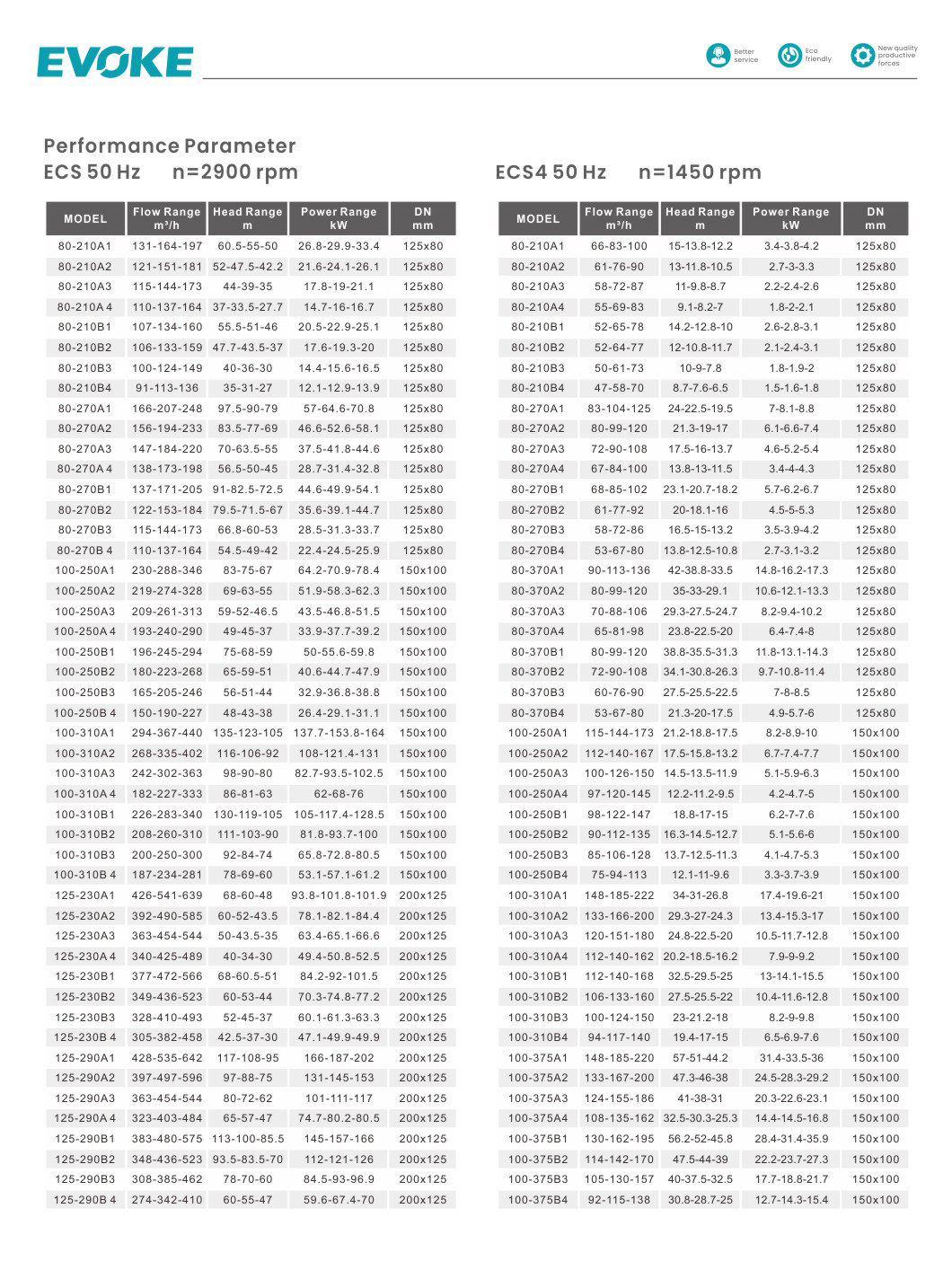

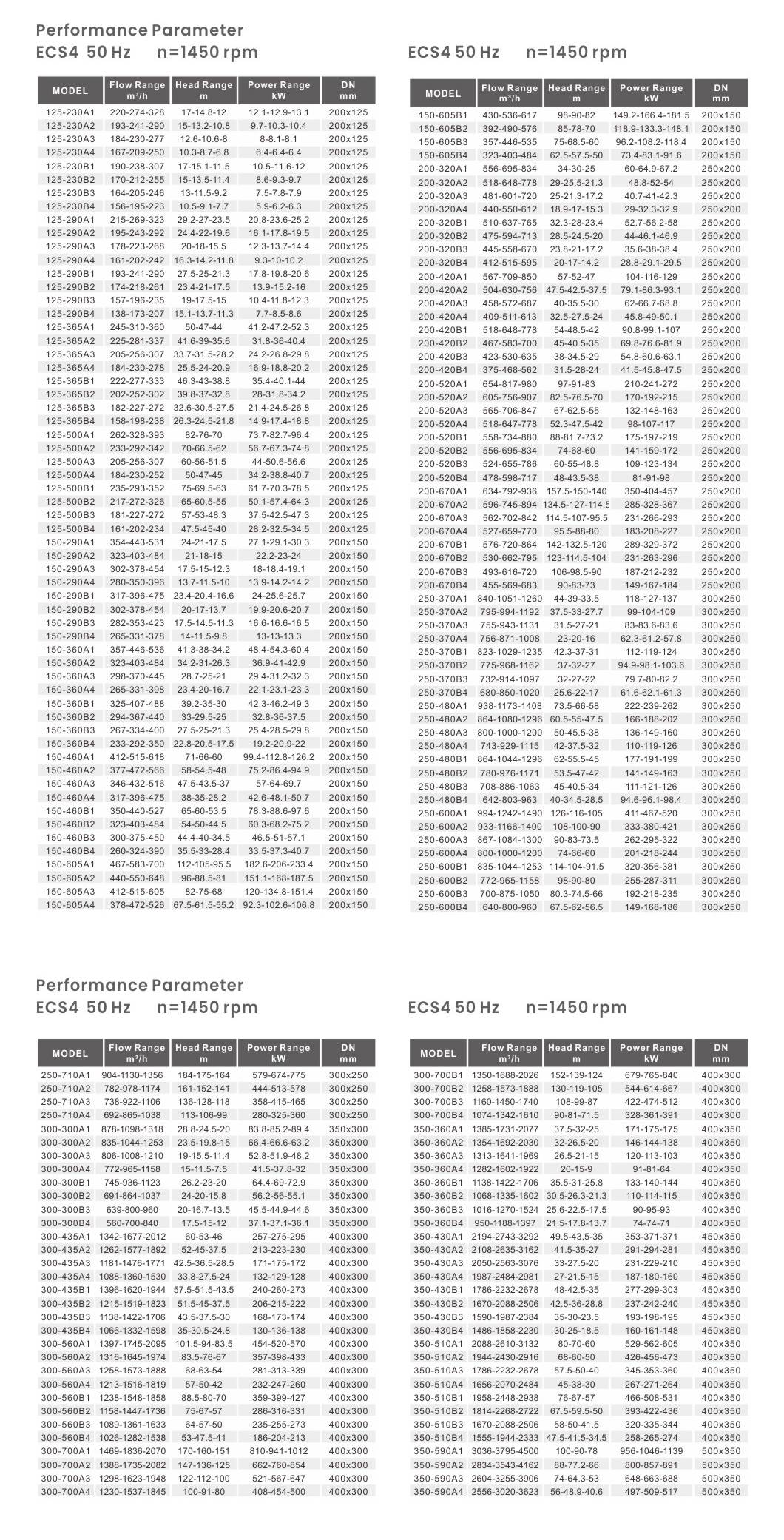

Technical Parameters

Inlet/Outlet range:DN150~DN600

Flow range:68~3975m³ / h

Head range:6~ 230m

Max working pressure: 25bar

Liquid temperature:0°C~120°C
