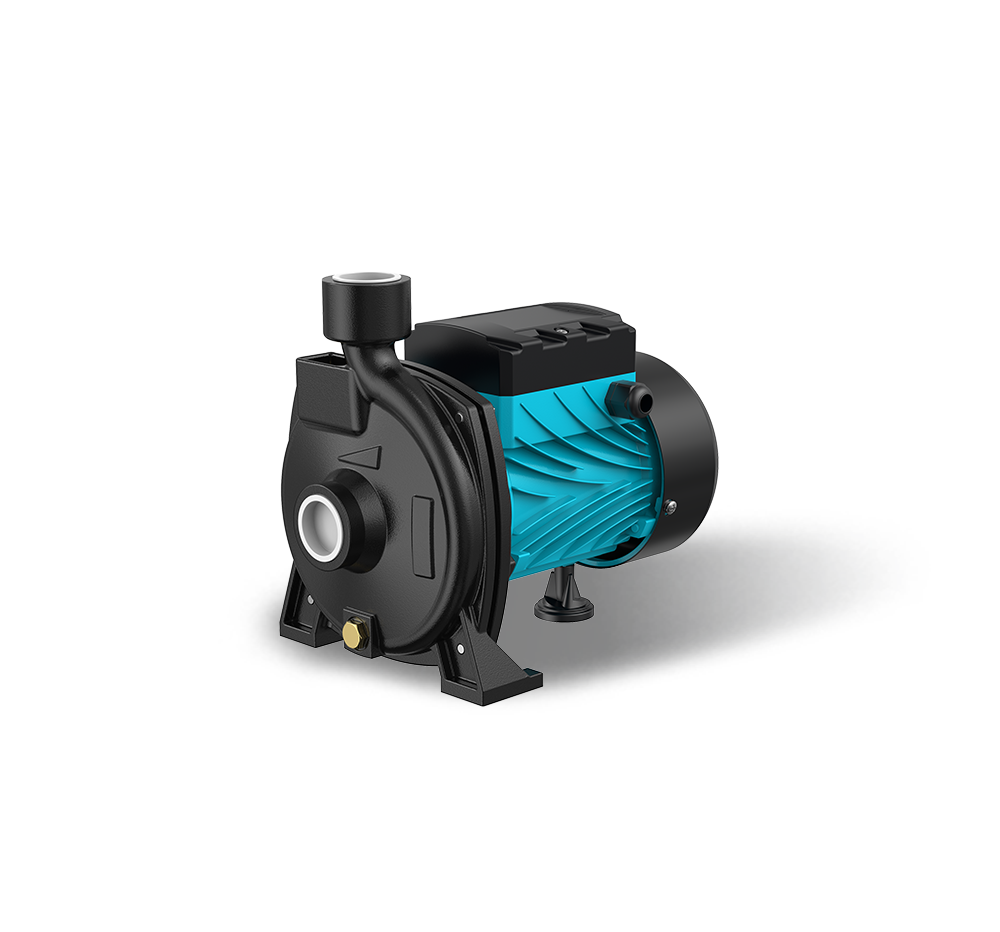

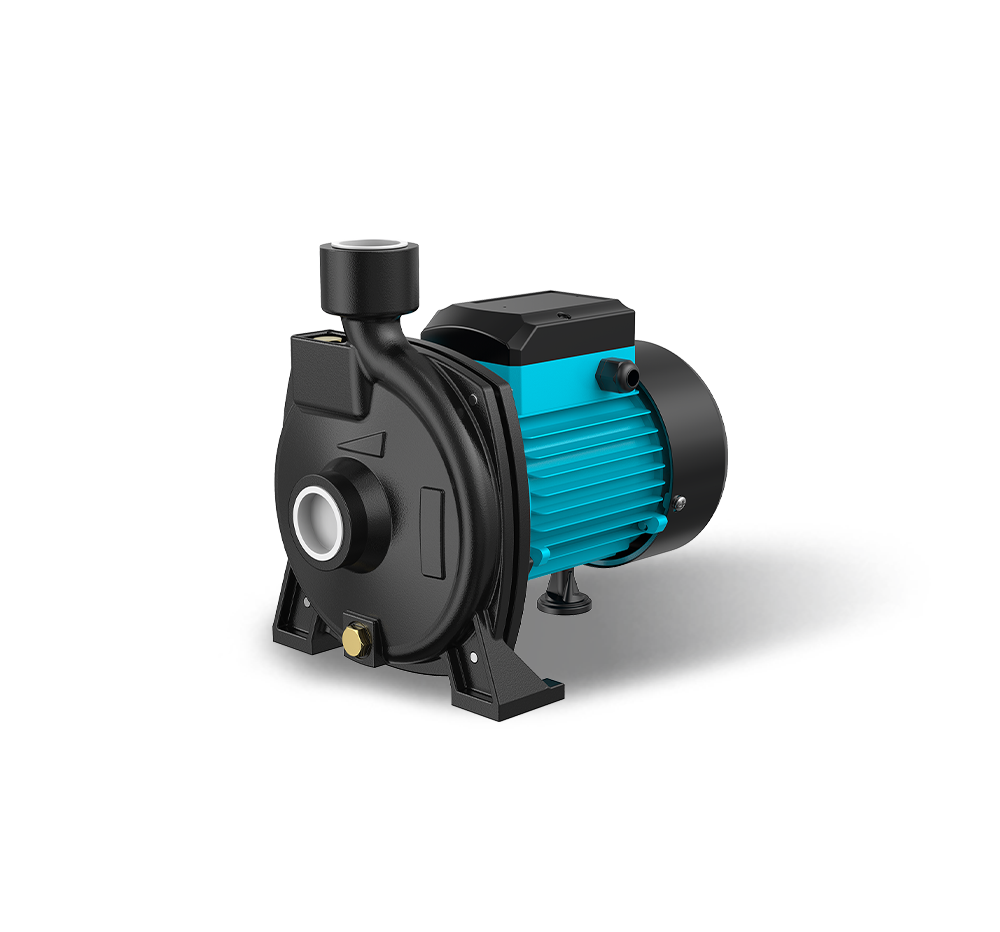

CPM Centrifugal Pump



Product Feature
Cast iron pump head
Suction lift up to 9m
Brass impeller, carbon steel motor shaft
With thermal protector inside
Three phase, 110V, 60Hz will be available upon request

Dual voltage, stainless shaft will be available upon request

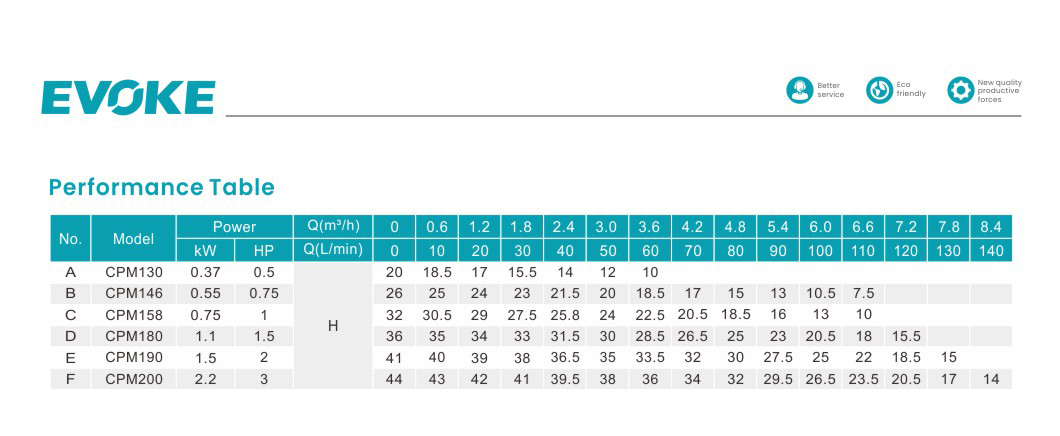

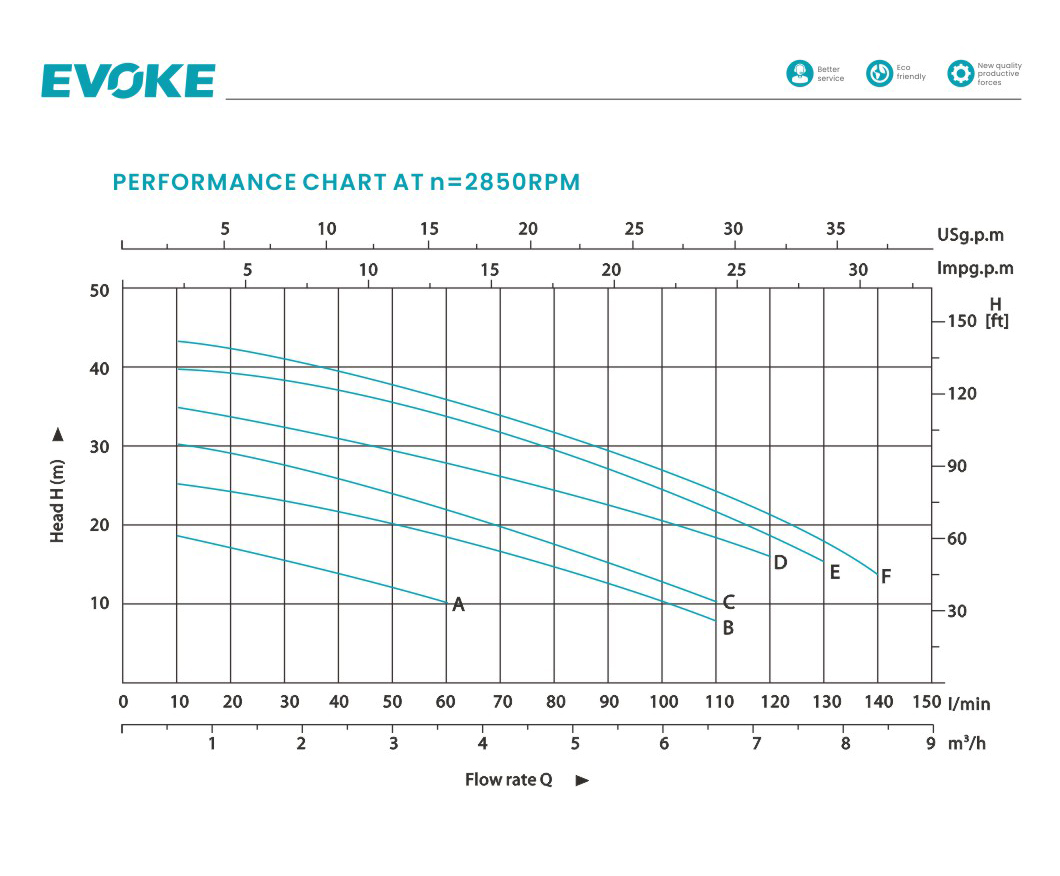

Technical Parameters
Inlet/Outlet range: 1”
Flow range: 0~8.4m³/h
Head range: 15~42m
Max working pressure: 10bar
