Product Feature
Design of axial split volute pump casing
Pump casing with anti-corrosion coating HT250
Double inlet radial impeller in AISI 304 or HT250
Shaft protection sleeve in sealed area
Use packing for sealing
Lubricating grease filled rolling element bearings
Equipped with an electric motor or diesel engine

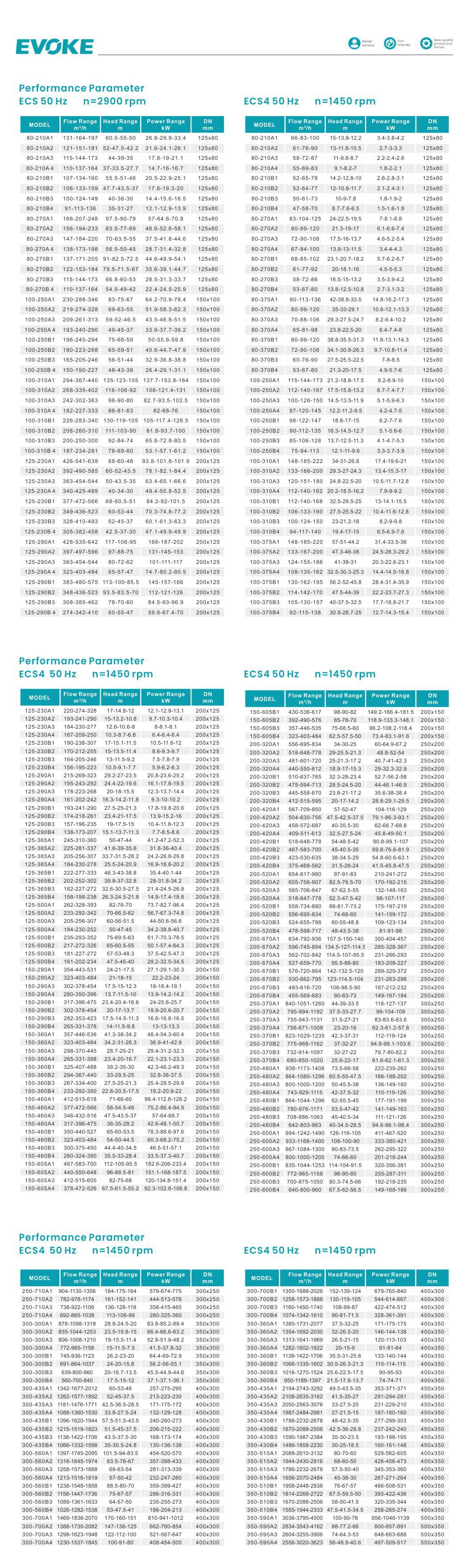

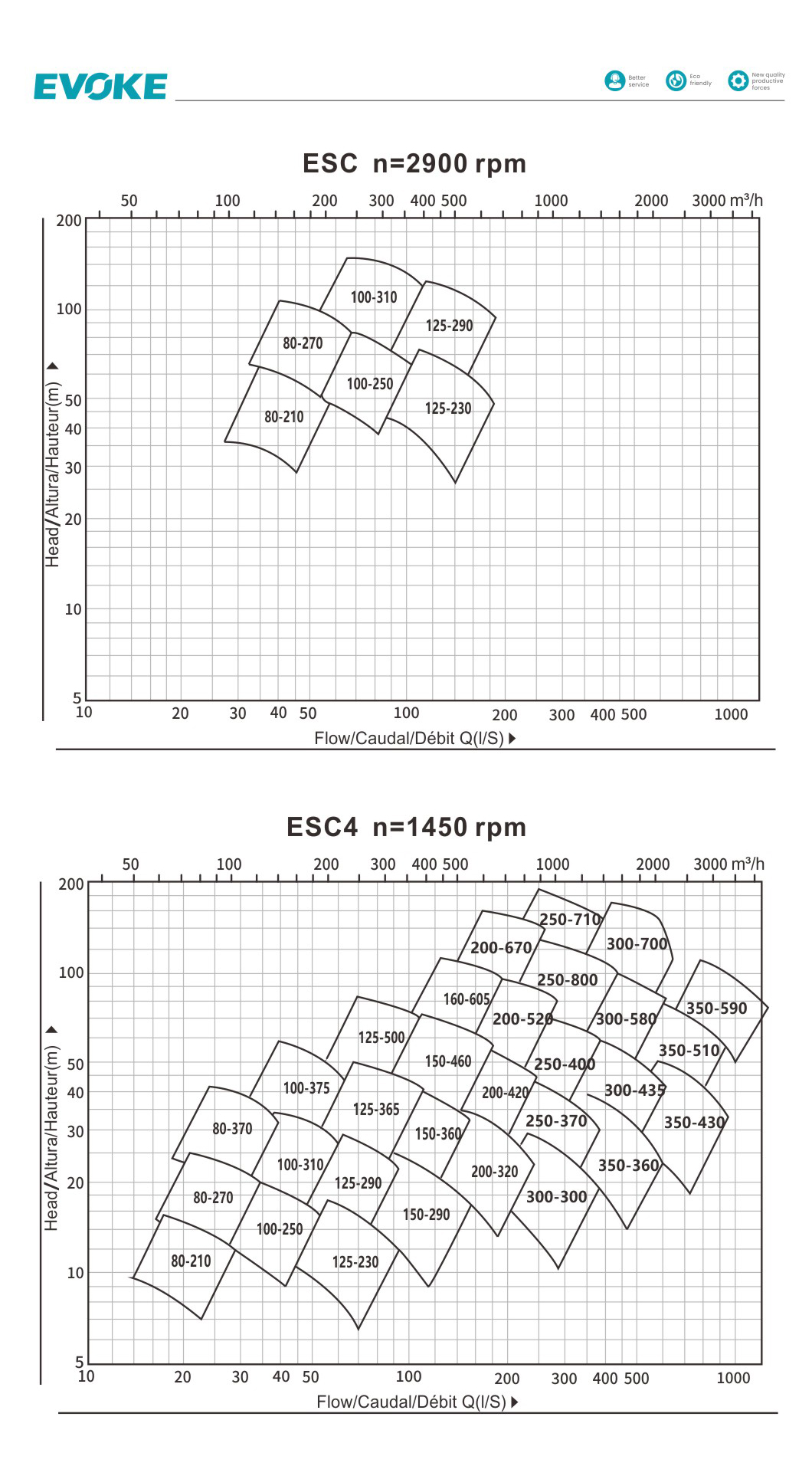

Technical Parameters
Inlet/Outlet range:DN150~DN600
Flow range:68~3975m³/h
Head range:6~ 230m
Max working pressure: 25bar
Liquid temperature:0°C~120°C
