Product Feature
Explosion-proof design can transport flammable
and explosive liquids such as gasoline
Large flow and high lift
Both conventional and hot water types
Pull-up design is convenient for disassembly and maintenance
YE3 high-efficiency motor
Protection grade IP55 , Class F

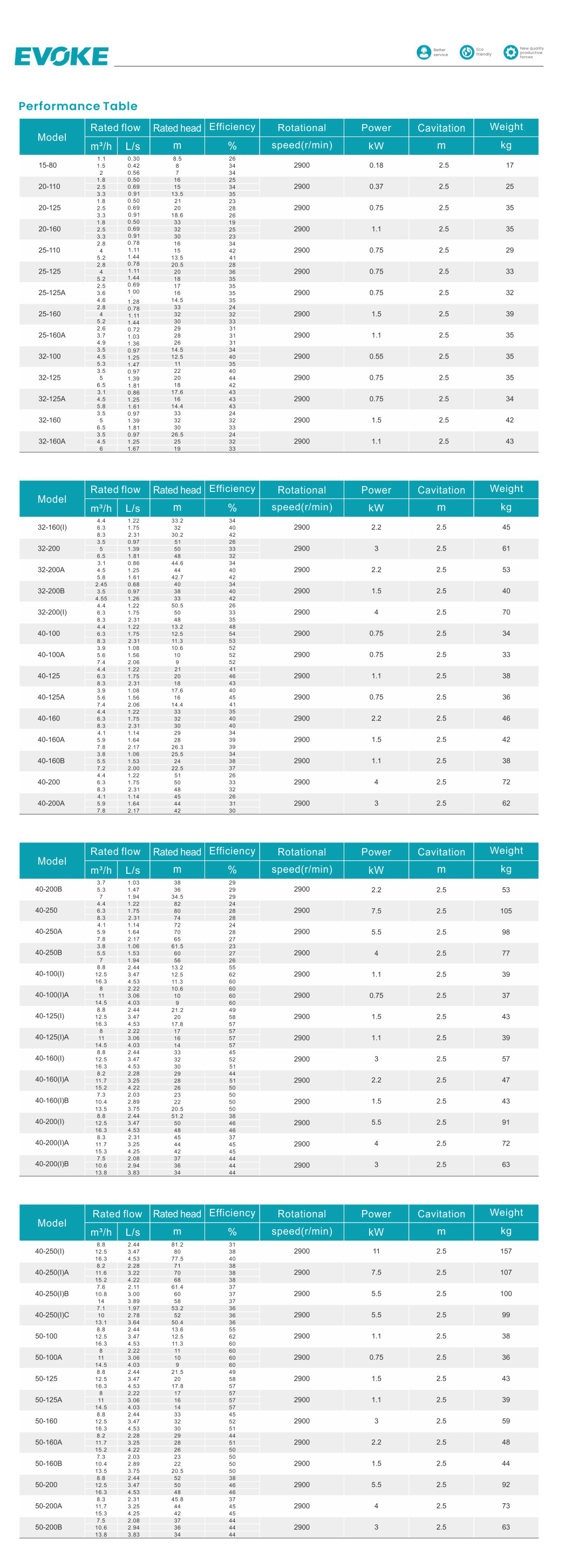

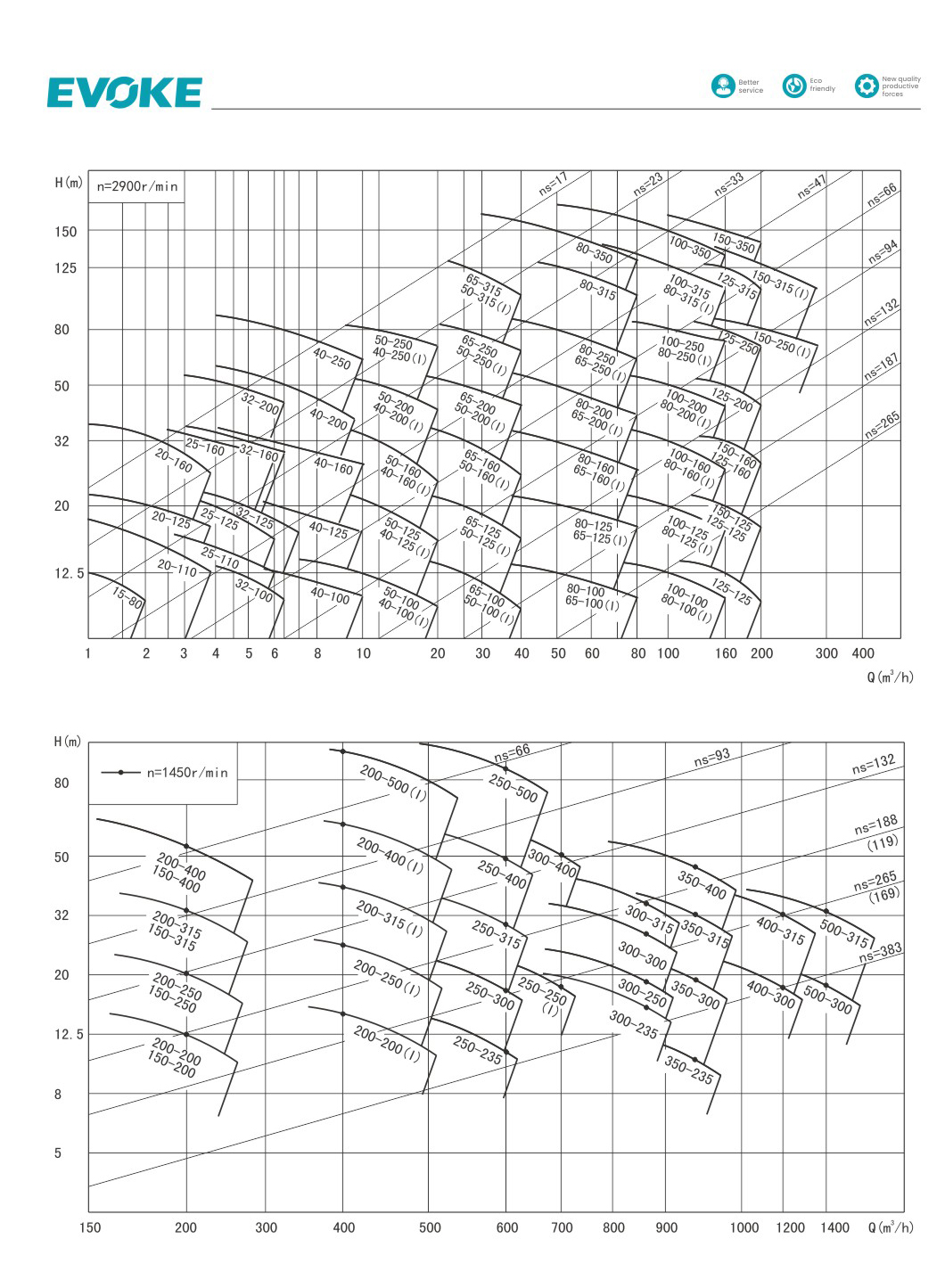

Technical Parameters
Inlet/Outlet range:DN15~DN300
Flow range:20~1200m³/h
Head range:3~ 150m
Max working pressure: 20bar
Liquid temperature:-20°C~120°C
