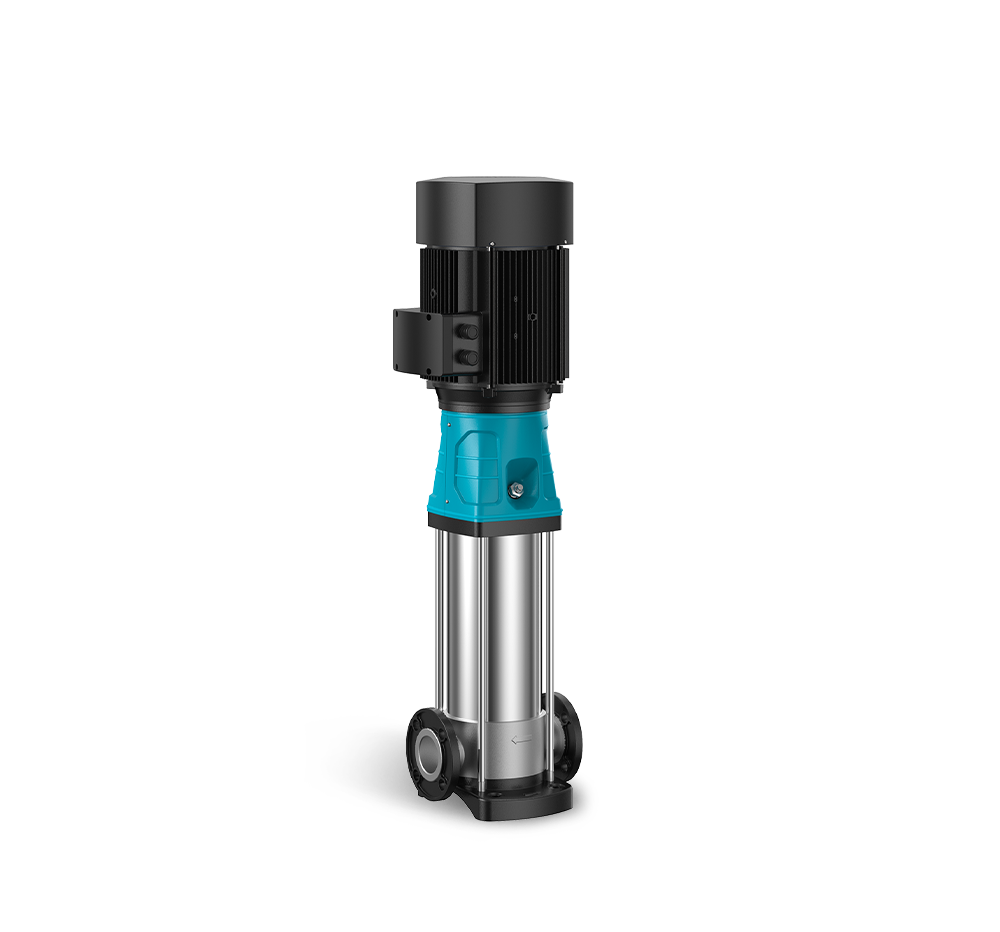

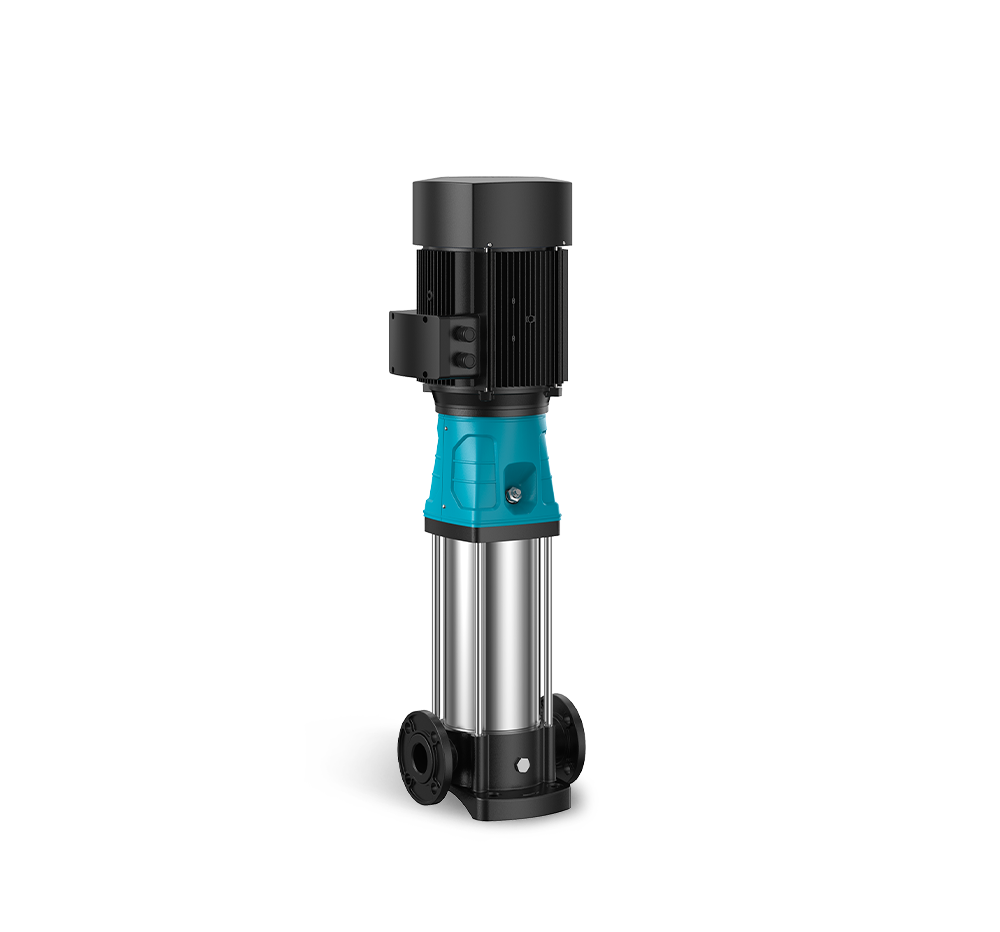

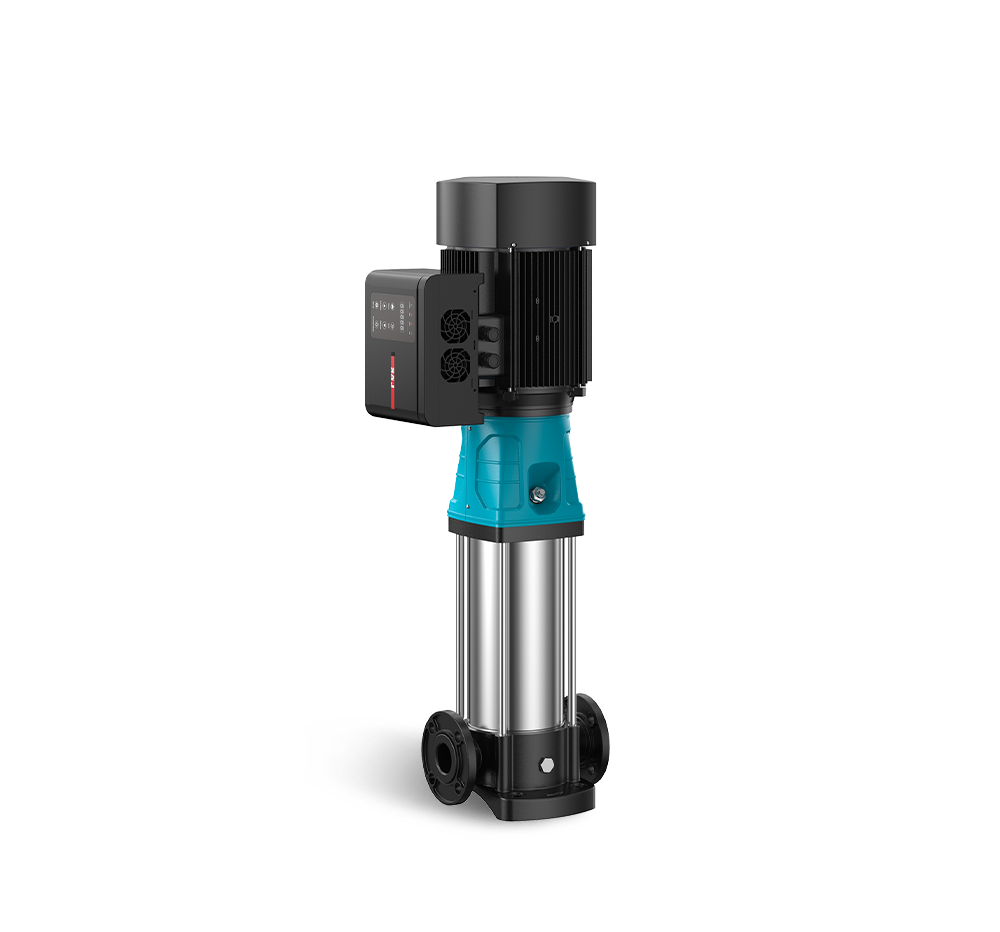

CDM(F) Vertical Multistage Centrifugal Pump



Product Feature
SS304/316 vertical multistage centrifugal pump

CDM pump head and base are cast iron

The impeller and shaft of CDM pump are stainless steel

Liquid passing parts of CDMF pump are made of stainless steel

IE3 high-efficiency motor, protection grade IP55 , Class F

High-quality bearing, wear-resistant mechanical seal

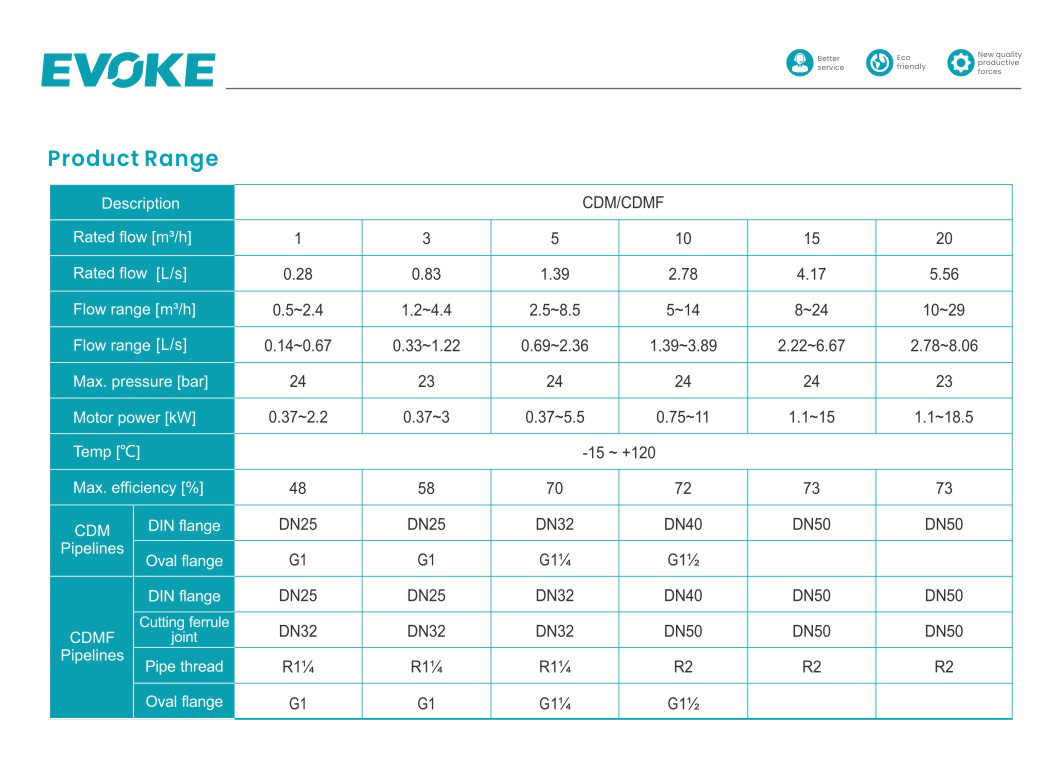

Technical Parameters

Inlet/Outlet range:DN25~DN50

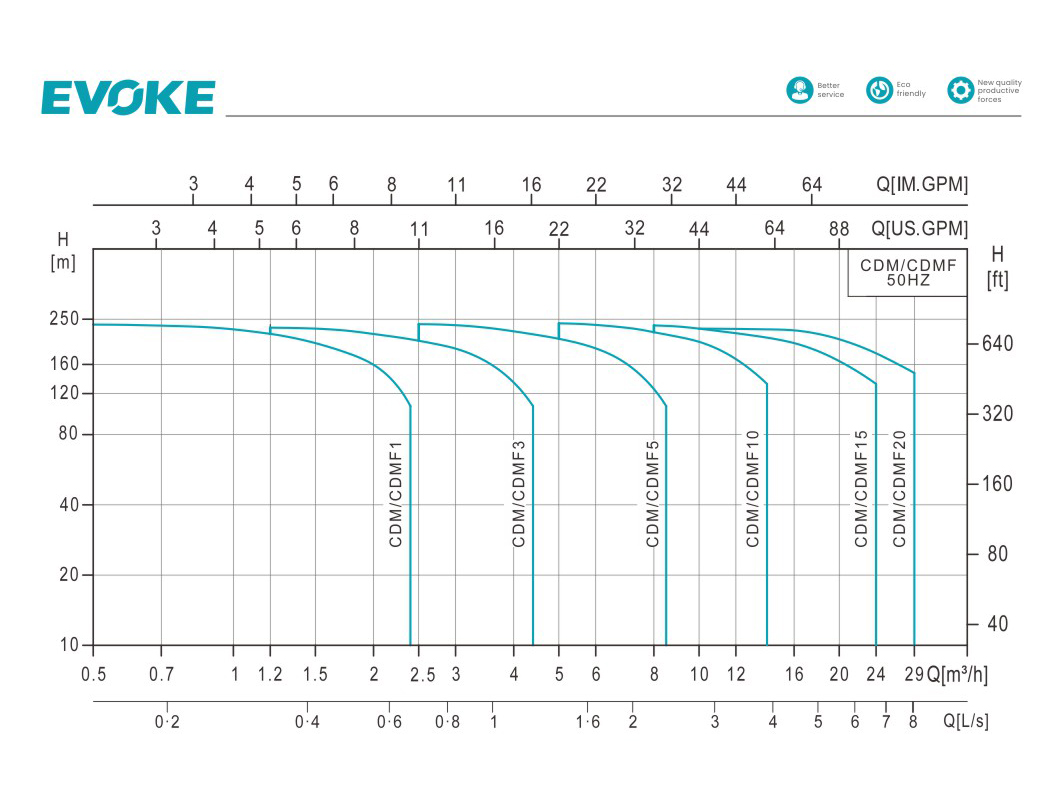

Flow range:0~29m³/h

Head range:6~205m

Max working pressure: 16~30bar

Liquid temperature:-15°C~120°C

CHAT NOW
Products >Commercial Pump > CDM(F)

Download Datasheet
