Product Feature

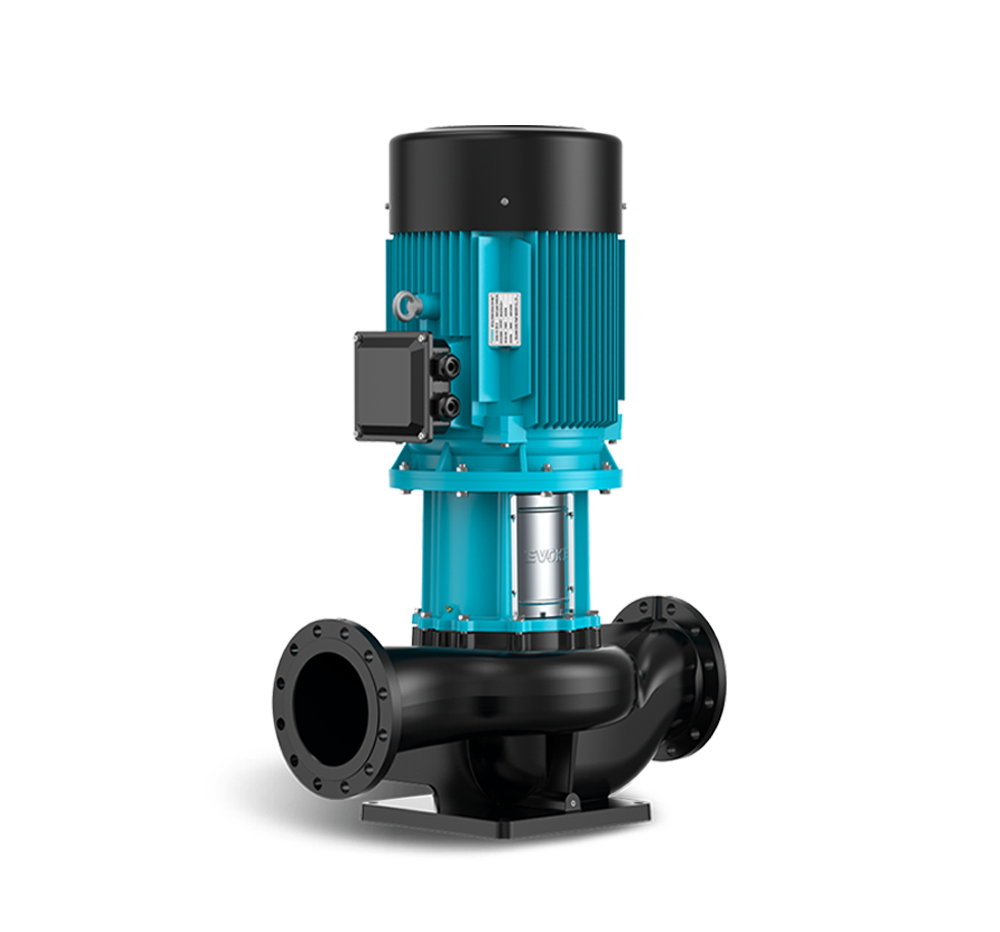

Single stage centrifugal pump with inline design
High temperature sealing, used for heating systems
Easy to pull back from the motor for coupling design
YE3 high-efficiency motor, protection grade IP55 , Class F
Pump casing with anti-corrosion coating
AISI 304 stainless steel shaft
High quality bearings, wear-resistant mechanical seals
Technical Parameters
Inlet/Outlet range:DN32~DN300

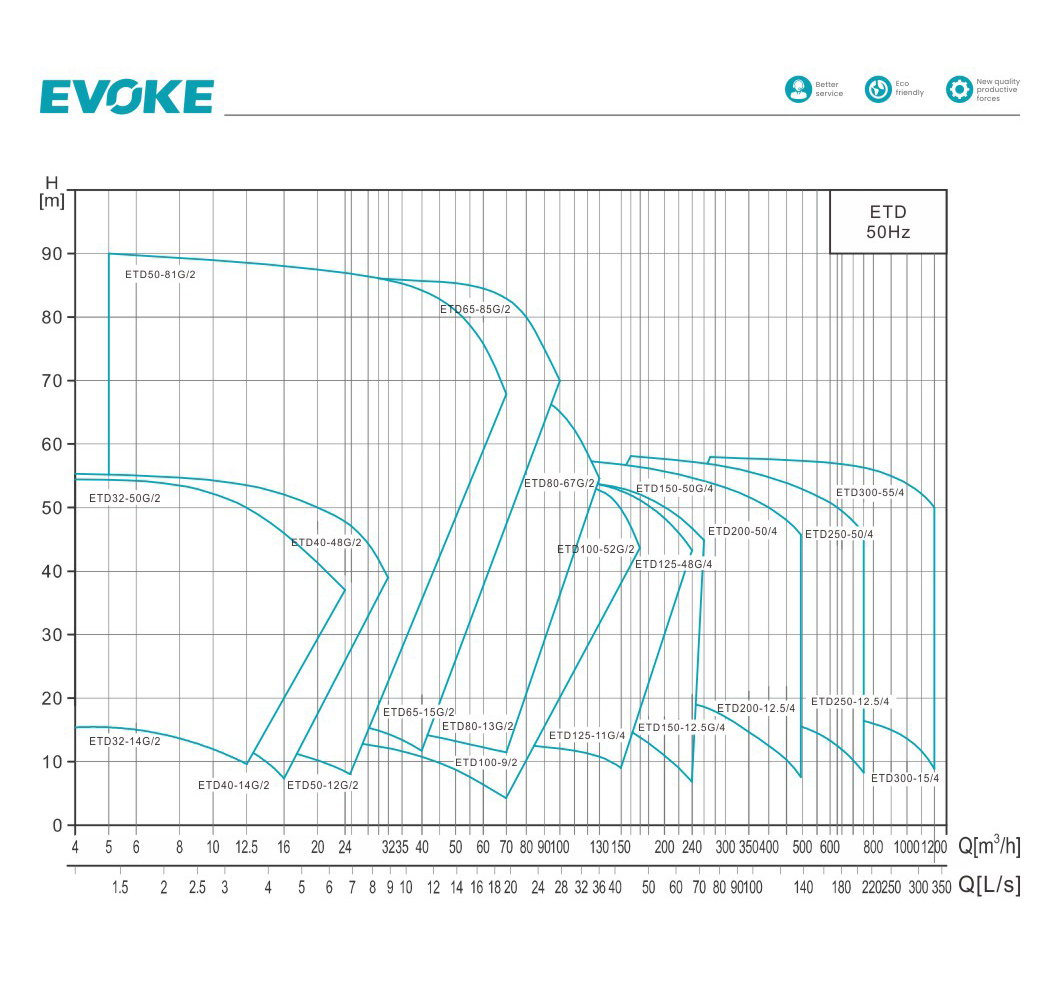

Flow range:2~1200m³/h
Head range:4~87m
Max working pressure:12~16bar
Liquid temperature:-15°C~120°C
