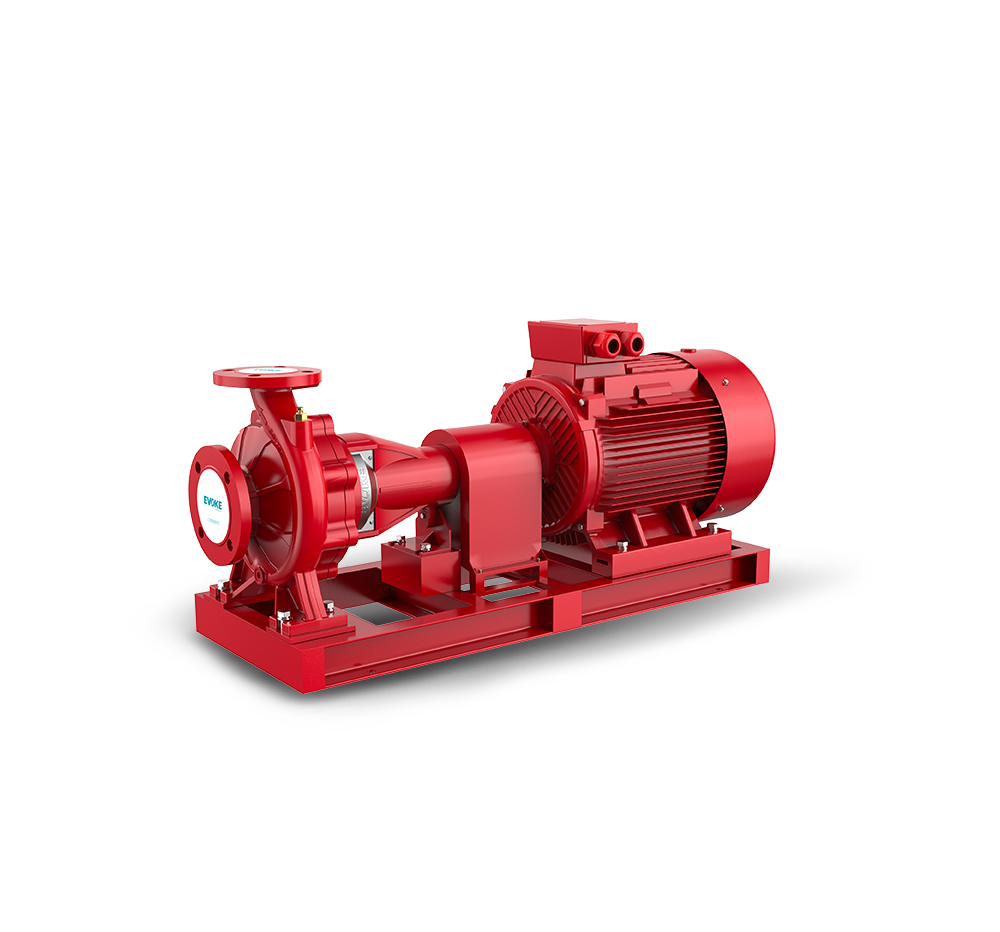

ESM End Suction Centrifugal Pump



Product Feature

New EN733 standard horizontal centrifugal pump

Both square and round motors available

YE3 high-efficiency motor, protection grade IP55 , Class F

Pump shell with anti-corrosion coating

Galvanized butt flanges and bolts, nuts and washers are included

High-quality bearing, wear-resistant mechanical seal

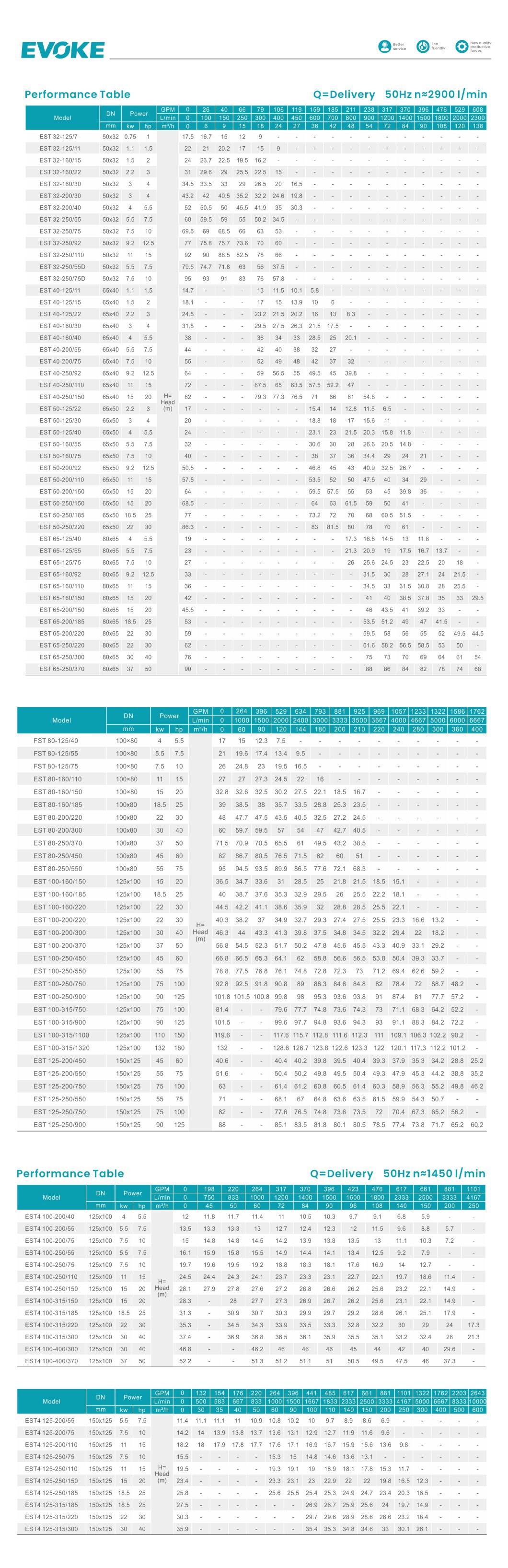

Technical Parameters

Inlet/Outlet range:DN32~DN150

Flow range:0~900m³/h

Head range:9~ 195m

Max working pressure: 20bar

Liquid temperature:-10°C~120°C
