Product Feature
Vertical single stage centrifugal pump for cooling water system
Large flow, low noise and high stability
High-quality machine seal to prevent water leakage from burning the machine
YE3 high-efficiency motor, protection grade IP55 , Class F
Anti-rust technology of electrophoretic coating for fuselage
Equipped with a base plate for easy maintenance
The impeller and pump shaft are made of stainless steel

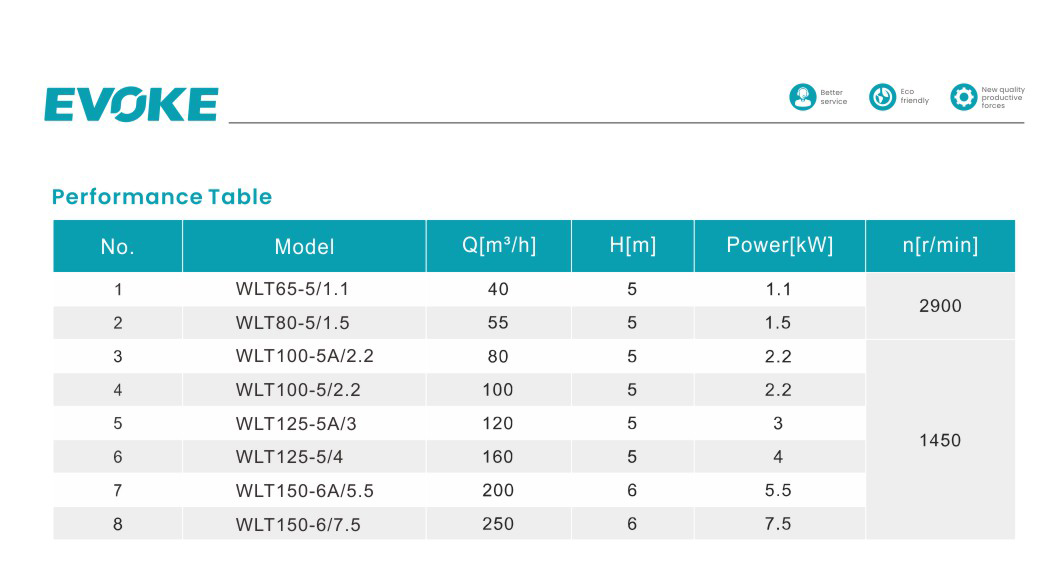

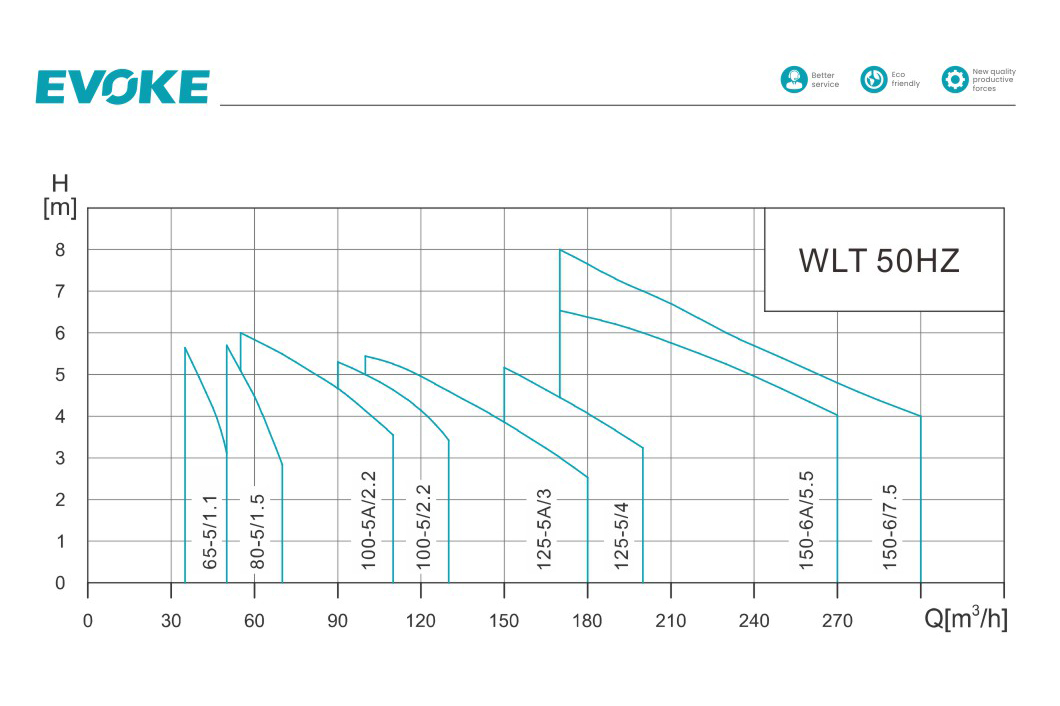

Technical Parameters
Inlet/Outlet range:DN65~DN150
Flow range:40~250m³/h
Head range:5~ 6m
Max working pressure: 6bar
Liquid temperature:-15°C~110°C
